Rotolight Titan V 8 Cameras 2020 (prototype)

Date Saved,2020/02/18 18:26:29

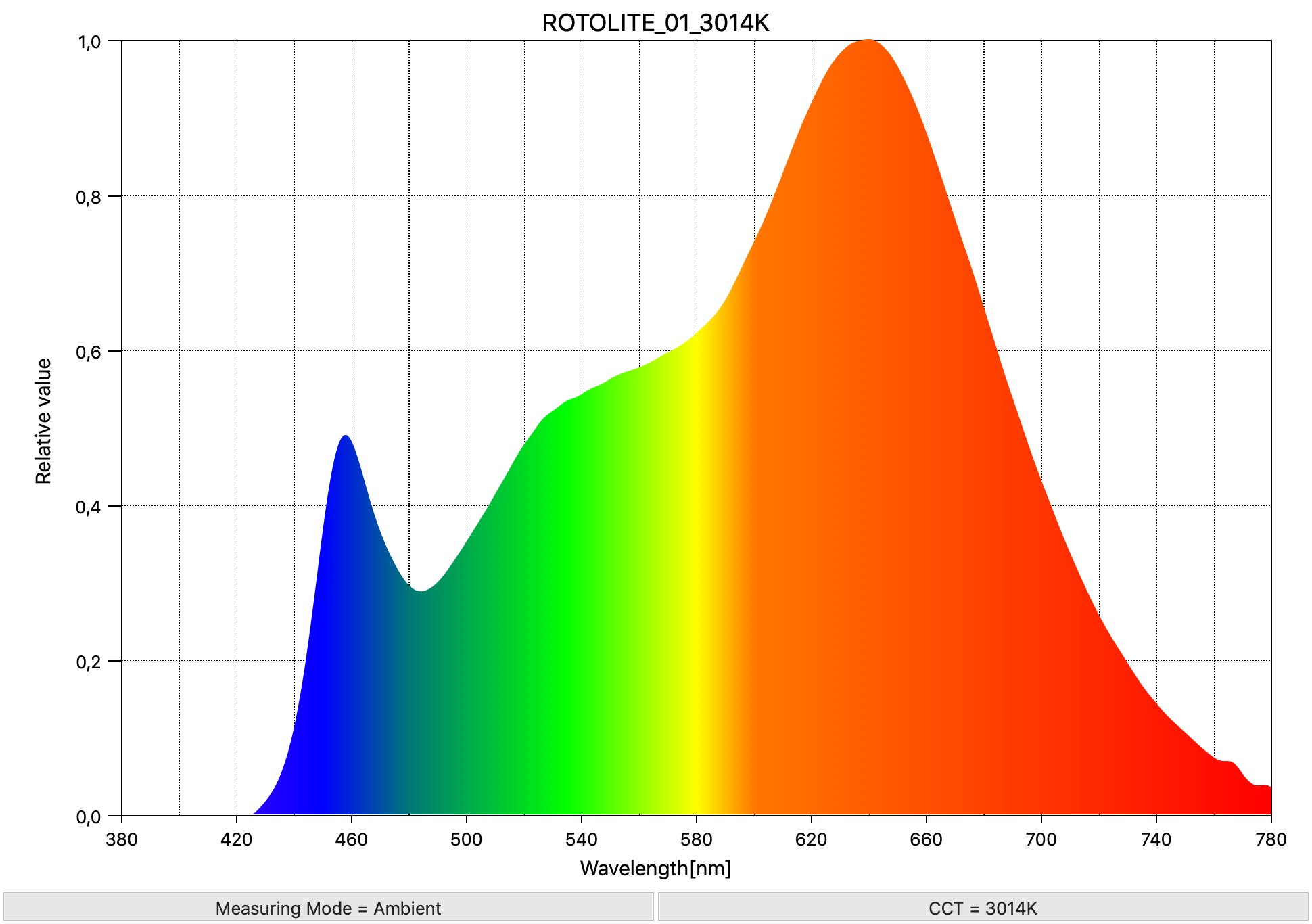

Title,ROTOLITE_01_3014K

Sekonic C800 Measuring Mode,Ambient
Color Space / White Point,HSI,D65
CCT [K],3014
⊿uv,-0.0024
Illuminance [lx],275
Illuminance [fc],25.6
Reference CCT [K],3200
LB Index [MK⁻¹],-19
LB Camera Filter,82
LB Lighting Filter,L218 1/8 CTB
CC Index,0.2G
CC#,0.6G
CC Camera Filter,CC025G
CC Lighting Filter,L278 1/8 PLUS G

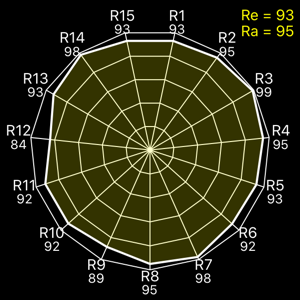

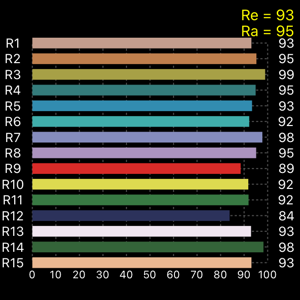

CRI Ra,94.9
CRI R1,93.0
CRI R2,95.5
CRI R3,98.5
CRI R4,94.8
CRI R5,93.5
CRI R6,92.8
CRI R7,97.3
CRI R8,93.9
CRI R9,86.5
CRI R10,92.6
CRI R11,92.3
CRI R12,82.2
CRI R13,92.9
CRI R14,97.8
CRI R15,92.7

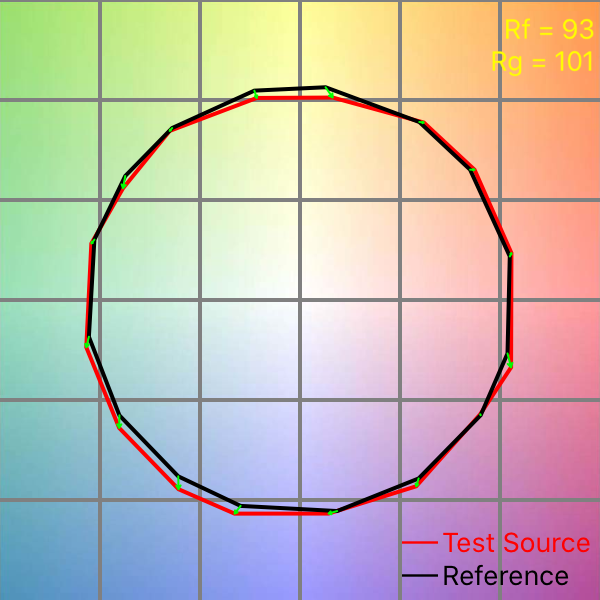

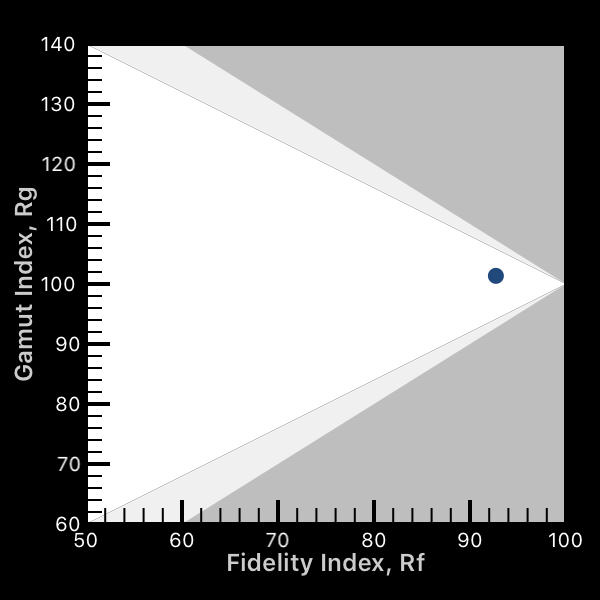

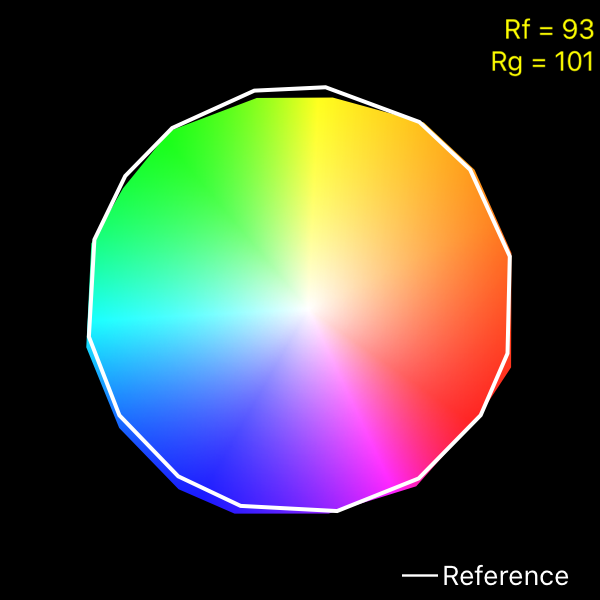

TM-30-18 Rf,92
TM-30-18 Rg,101
SSIt,83
SSId,53
SSI1,---
SSI2,---
TLCI,98
TLMF,---

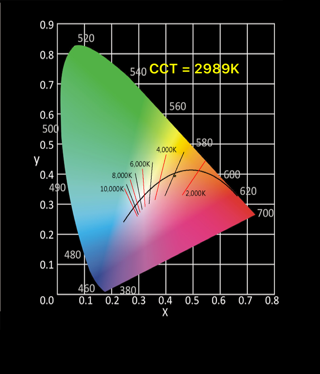

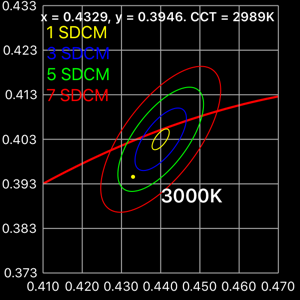

CIE1931 x,0.4325
CIE1931 y,0.3965
Hue,33deg
Saturation,71%



Date Saved,2020/02/18 18:26:30

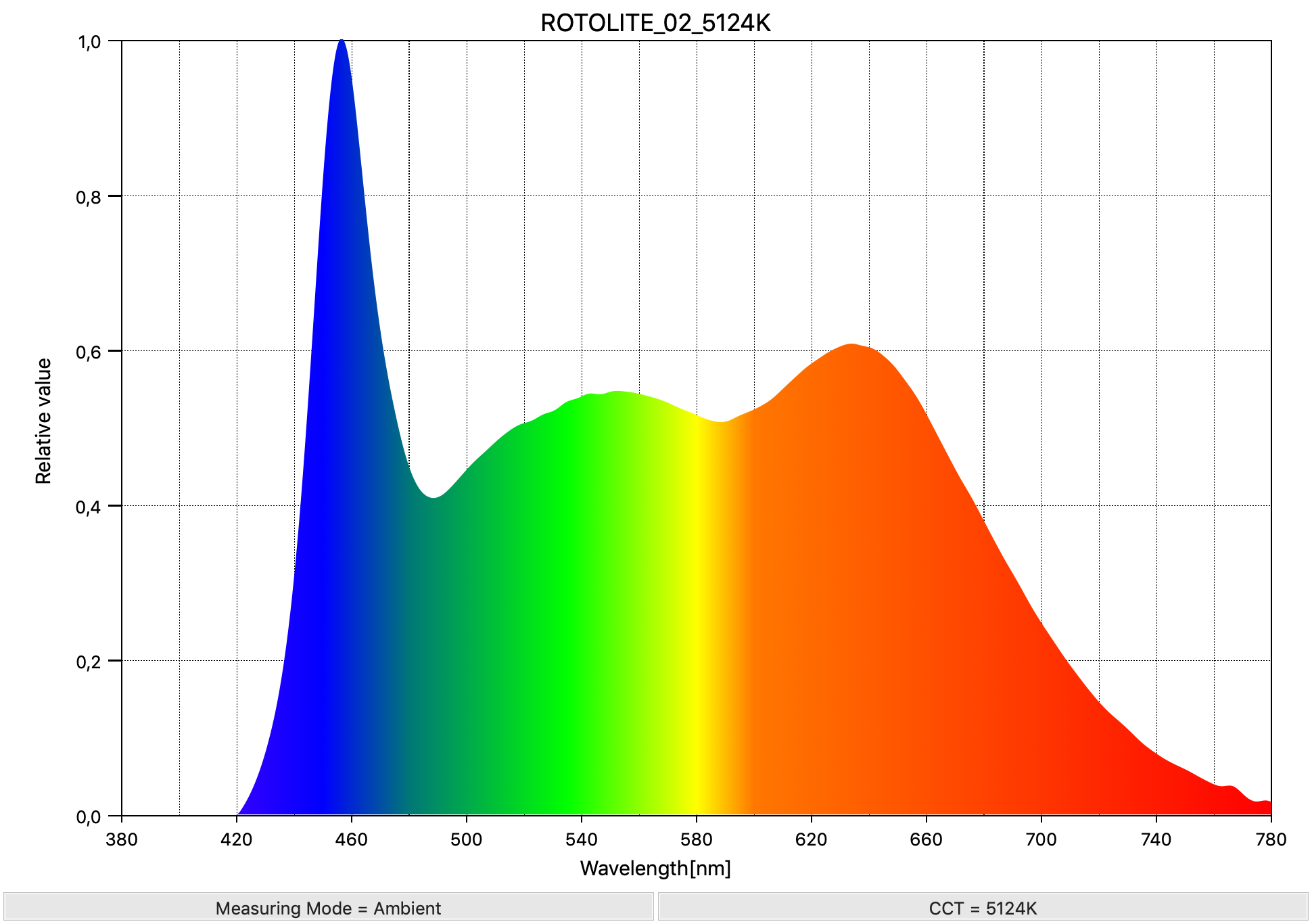

Title,ROTOLITE_02_5124K

Sekonic C800 Measuring Mode,Ambient
Color Space / White Point,HSI,D65
CCT [K],5124
⊿uv,-0.0049
Illuminance [lx],256
Illuminance [fc],23.8
Reference CCT [K],3200
LB Index [MK⁻¹],117
LB Camera Filter,85, 81
LB Lighting Filter,L205 1/2 CTO, L223 1/8 CTO
CC Index,0.5G
CC#,1.3G
CC Camera Filter,CC20G
CC Lighting Filter,L278 1/8 PLUS G

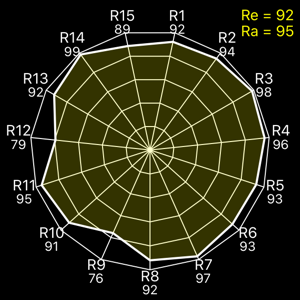

CRI Ra,94.2
CRI R1,92.2
CRI R2,94.1
CRI R3,98.4
CRI R4,95.9
CRI R5,93.0
CRI R6,92.4
CRI R7,96.1
CRI R8,91.4
CRI R9,74.4
CRI R10,90.8
CRI R11,96.2
CRI R12,75.9
CRI R13,92.3
CRI R14,98.6
CRI R15,88.1

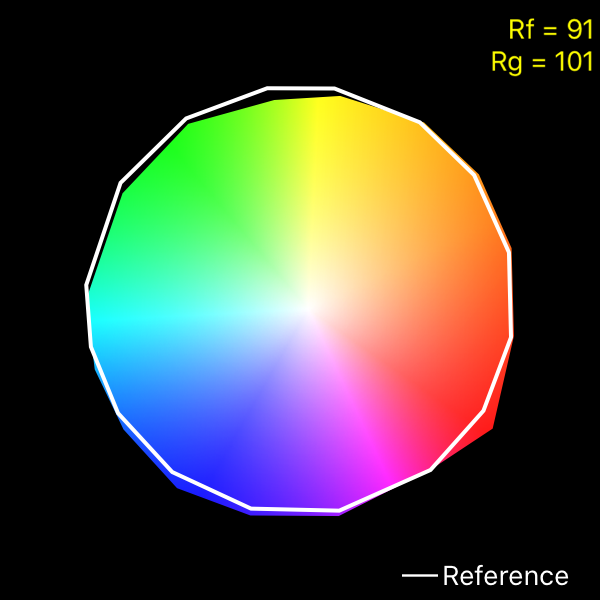

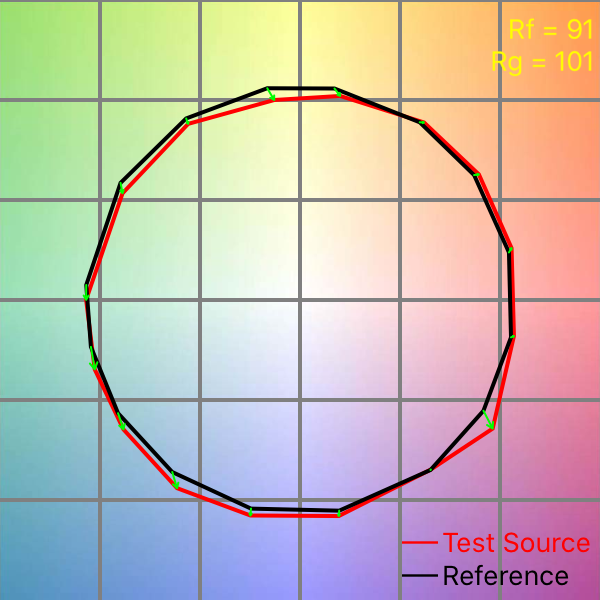

TM-30-18 Rf,91
TM-30-18 Rg,101
SSIt,52
SSId,70
SSI1,---
SSI2,---
TLCI,97
TLMF,---

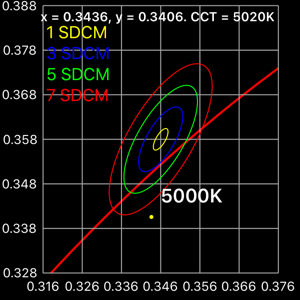

CIE1931 x,0.3410
CIE1931 y,0.3389
Hue,24deg
Saturation,15%
